Aluminium Oxide ( ά? -Al2O3 )
|
|
|
|
|
|
|
Aluminium oxid: Al2O3-Cr,
Al2O3-Flux, Al2O3-Cr Flux
|
Aluminium oxid: Al2O3 Korundum
and Ruby - Crystals
|
Aluminium oxid: Al2O3 : Cr
Ruby rod
|
|
|
|
|
|
Aluminium oxid Al2O3
|
Aluminium oxid Al2O3
|
|
|
|

|
|
|
|
|
|
Crystal properties
|
|
Crystal growth method
|
Czochralski, HEM,Verneuil
|
|
Crystal growth orientation
|
(0 001),(1102),(1012),(1010)
|
|
Maximum size
|
7 inch diameter
|
|
Variations
|
Doped crystals (Fe, Nb, Ti, W,Ta,V,Cr)
Other dopands on request
|
|
Crystallographic properties
|
Hexagonal / Rhombohedric
|
|
Crystallographic structure
|
a = 4.77 A
c = 13.04 A
a : c = 1 : 2.734
|
a = 4.758 Å
c = 12.991 Å
|
|
Mineralogical synonyms
|
Sapphire, Corundum
|
|
Twinning structure
|
Twinfree
|
|
Colour
|
Colourless
|
|
Density
|
3.98 g/cm3
|
|
Melting point
|
2052 °C
|
|
Hardnes
|
9 (Mohs)
|
|
|
|
Thermal expansion coefficient
|
5.4 * 10_6 K_1
6.2 * 10_6 K_1
|
|| c-axis
^ c-axis
|
RT
RT
|
|
Dielectric constant
|
9.4
11.5
|
| c-axis
^ c-axis
|
RT
RT
|
|
|
|
Physical properties cont.
|
|
Dielectric loss tangent (10GHz)
|
3.0 * 10_5
8.6 * 10_5
|
| | c-axis
^ c-axis
|
RT
RT
|
|
Dielectric constant:
|
1016 W/cm
|
RT
|
|
|
|
Optical properties
|
|
Transmission range
|
0.2 to 6.0 mm
|
|
|
Refraction index:
|
nd = 1.8336
nd = 1.58638
|
at 265 nm
at 5.6 mm
|
|
Dispersion
|
0.011
|
|
|
|
|

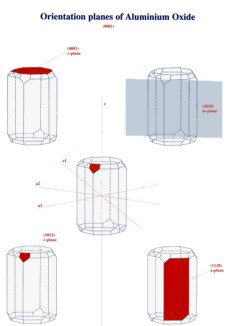

Standard orientations
|
|
|
(0001),(1102),(1012),(1010)
Other orientations on request
|
|
|
|
|
|
List of Refractive index, ordinary ray at 24 °C (Al2O3)
|
|
Optical properties refraction index Aluminium oxide
|
|
Wavelength (µm)
|
Refractive index
|
|
0,28035
|
1,8243
|
|
0,289036
|
1,8195
|
|
0,29673
|
1,8159
|
|
0,30215
|
1,8135
|
|
0,31300
|
1,8091
|
|
0,33415
|
1,8018
|
|
0,34662
|
1,7981
|
|
0,36105
|
1,7945
|
|
0,36501
|
1,7936
|
|
0,39064
|
1,7883
|
|
0,40466
|
1,7858
|
|
0,43583
|
1,7812
|
|
0,54607
|
1,7708
|
|
0,57696
|
1,7688
|
|
0,57907
|
1,7687
|
|
0,64385
|
1,7655
|
|
0,70652
|
1,7630
|
|
0,85212
|
1,7588
|
|
0,89440
|
1,7579
|
|
1,01398
|
1,7555
|
|
1,12866
|
1,7534
|
|
1,36728
|
1,7494
|
|
1,39506
|
1,7489
|
|
1,52952
|
1,7466
|
|
1,69320
|
1,7437
|
|
1,70913
|
1,7434
|
|
1.81307
|
1,7414
|
|
1.97010
|
1,7383
|
|
2,15260
|
1,7344
|
|
2,24929
|
1,7323
|
|
2,32542
|
1,7306
|
|
2,43740
|
1,7278
|
|
3,24320
|
1,7044
|
|
3,26660
|
1,7036
|
|
3,30300
|
1,7023
|
|
3,29300
|
1,7015
|
|
3,41880
|
1,6982
|
|
3,50780
|
1,6950
|
|
3,70000
|
1,6875
|
|
4,25800
|
1,6637
|
|
4,95400
|
1,6266
|
|
5,14560
|
1,6151
|
|
5,34900
|
1,6020
|
|
5,41900
|
1,5973
|
|
5,577
|
1,5864
|
|
